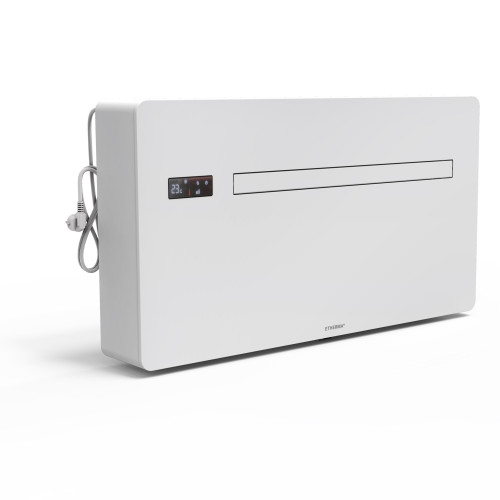

FIRE+ICE - The innovative heat pump with air conditioning

The innovative FIRE+ICE domestic heat pump with air conditioning function impresses with its purist design, multi-functional use and individual control options.

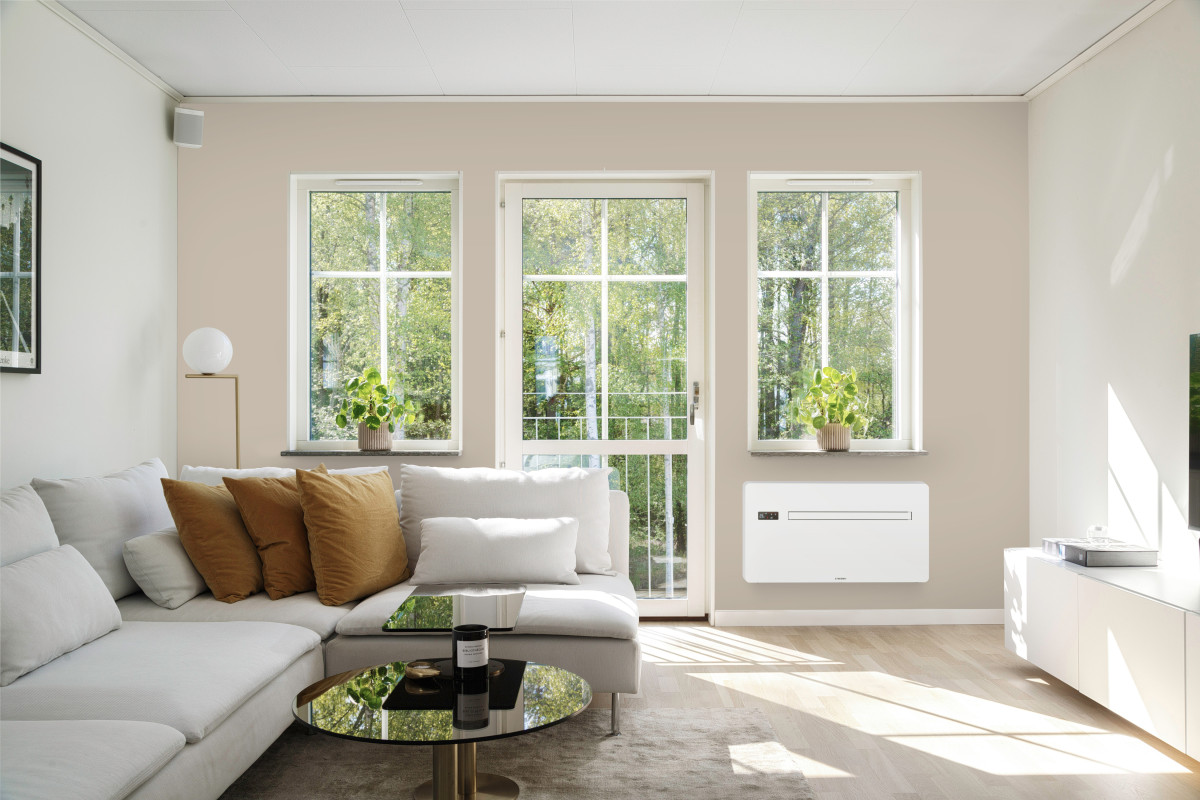

FIRE+ICE heat pump with air conditioning function is a monoblock air heat pump with no external unit. It is perfect for rooms up to 35m² in size (such as living rooms or bedrooms) and is the optimal decentralised solution for individual residential units – either for older buildings or for easy, rapid apartment renovations. It serves as a straightforward replacement for gas and oil heating systems as well as night storage heaters.

As a heat pump, it primarily impresses as an efficient heating system with a COP of 3.28 and a heat output of 3.05kW. However, it can also be operated as an air conditioning unit in the warmer months, allowing it to be used all year round.

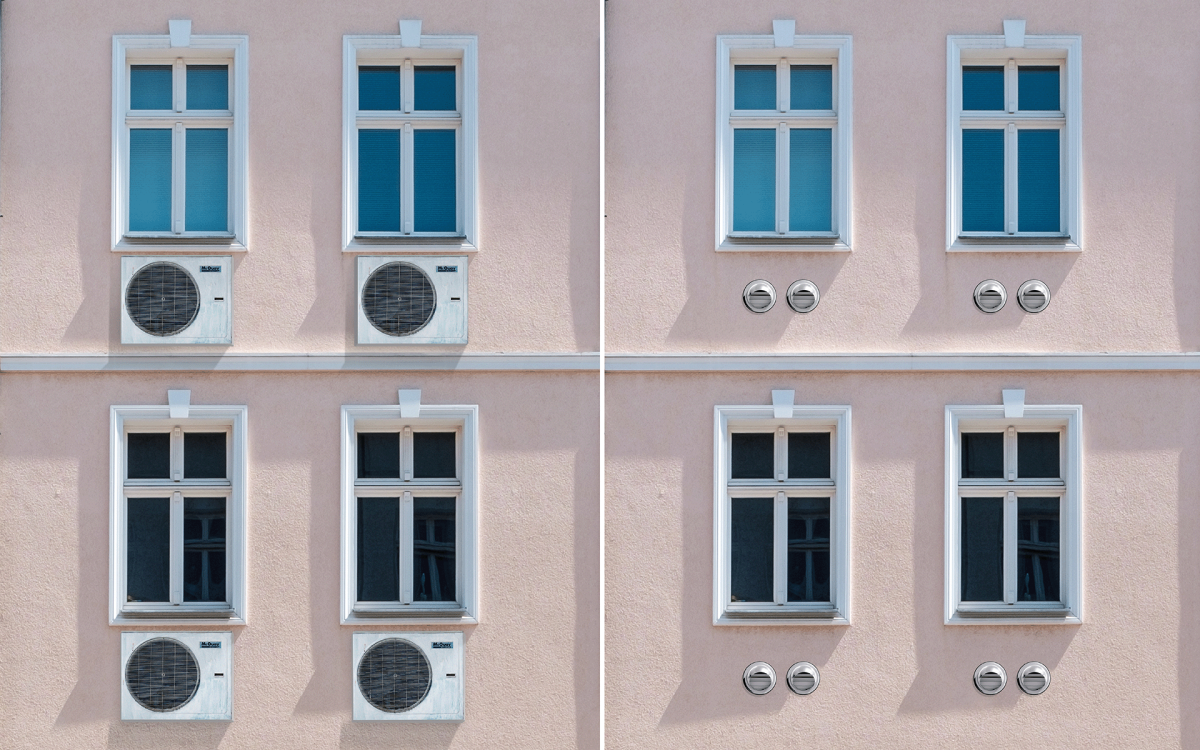

Depending on requirements, the unit can be controlled via the touch display, the remote control or the external room thermostat (available separately). The monobloc design means the heat pump can be installed in rooms with an external wall and does not require an external unit on the façade or on the property. Only two 200mm core drill holes and one 20mm hole to the outside are required for installation. The simple installation does not require a refrigerant technician. The heat pump is connected directly to a socket. The heat pump works with R32 refrigerant.

The scope of delivery includes all the necessary parts for installation, including:

• drilling template

• insulated wall duct (1m length)

• sealing tapes

• stainless steel air hole covers and mounting rail

• remote control incl. battery

• a heated condensate hose

TECHNICAL DETAILS

• Voltage: 230 V

• Fuse rating (inert): 16Amps

• Max. connected load without/with additional electric heater: 1.09/2.89 kW

• Additional heating output: 0.9/1.8 kW

• Max. heat output at outdoor temperature of 7°C without/with additional electric heater: 3.05/4.85 kW

• Max. heat output at outdoor temperature of 2°C without/with additional electric heater: 2.51/4.31 kW

• Max. heat output at outdoor temperature of -7°C without/with additional electric heater: 1.60/3.40 kW

• Max. cooling output at 35/27°C: 3.10 kW

• COP at 7°C (Coefficient of Performance): 3.28

• EER (Energy Efficiency Ratio): 3.25

• Indoor noise pressure level (measured according to ISO 7779): 27.0-41.0 dB(A)

• Noise pressure level at maximum fan speed: Up to 63 dB(A)

• PFAS-free refrigerant: R32 (0.5 kg)

• Air hole diameter External wall (2x): 200mm

• Condensation line diameter External wall (1x): 20mm

• Weight: 41 kg

• Plug connection cable: 1.7m

• IP rating: IPX0

• Energy efficiency class - heating: A

• Energy efficiency class - cooling: A+
